Total Station STEC AXIS 9L is equipped with a 5.0-inch high-resolution touchscreen

Rp65.000.000

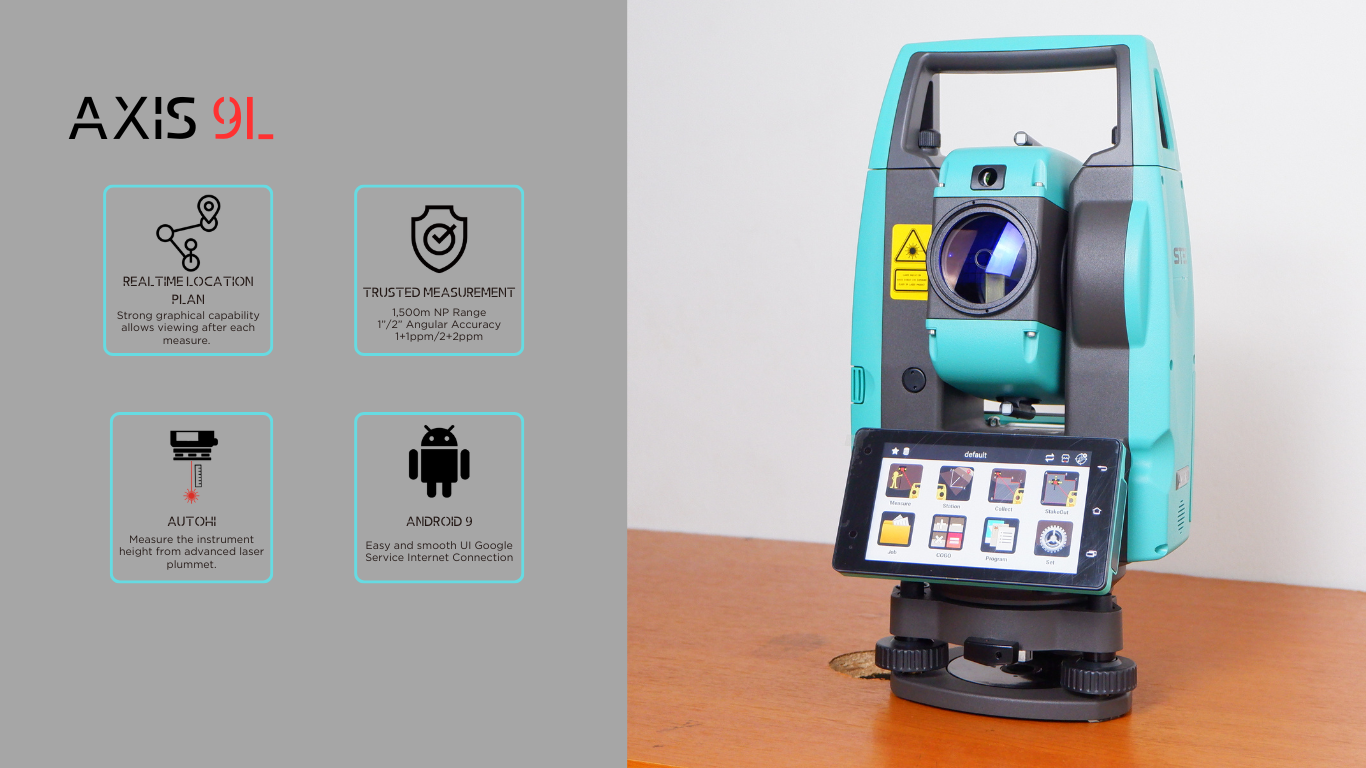

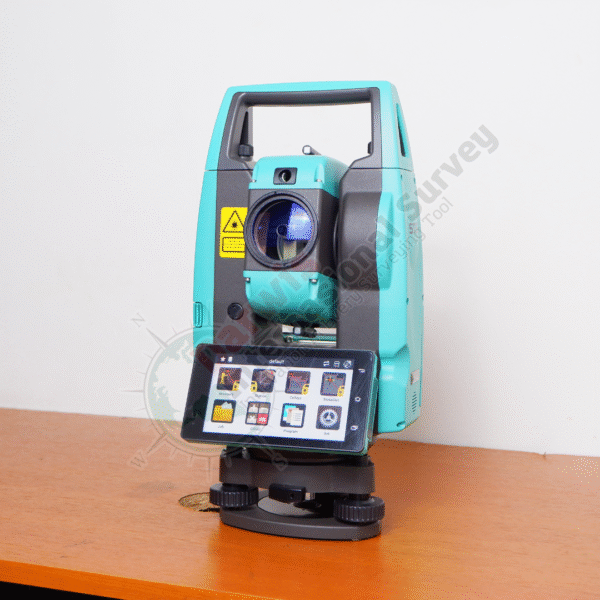

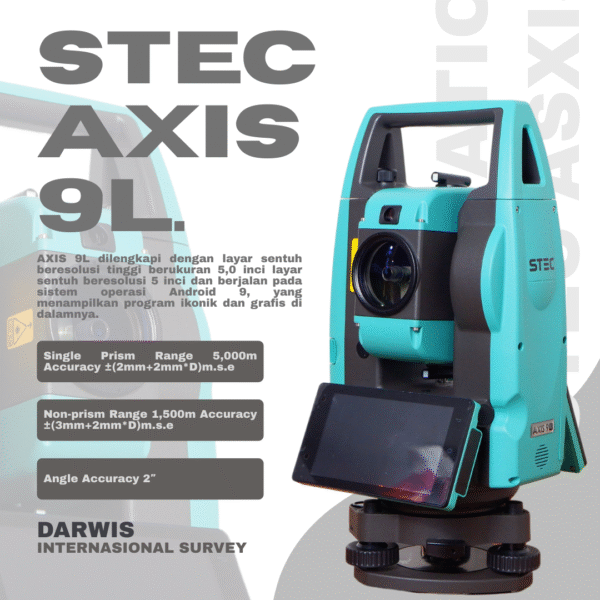

STEC AXIS 9L Android Total Station

AXIS 9L dilengkapi dengan layar sentuh beresolusi tinggi berukuran 5,0 inci layar sentuh beresolusi 5 inci dan berjalan pada sistem operasi Android 9, yang menampilkan program ikonik dan grafis di dalamnya. Penyertaan lampu pemandu dan H.I otomatis menyederhanakan tugas pengukuran dan pengintaian. AXIS 9 meningkatkan efisiensi di mana saja.

Stok 1

SKU: TS-004 Kategori: ,

STEC AXIS 9L Android Total Station

AXIS 9L dilengkapi dengan layar sentuh beresolusi tinggi berukuran 5,0 inci layar sentuh beresolusi 5 inci dan berjalan pada sistem operasi Android 9, yang menampilkan program ikonik dan grafis di dalamnya. Penyertaan lampu pemandu dan H.I otomatis menyederhanakan tugas pengukuran dan pengintaian. AXIS 9 meningkatkan efisiensi di mana saja.

AXIS9L

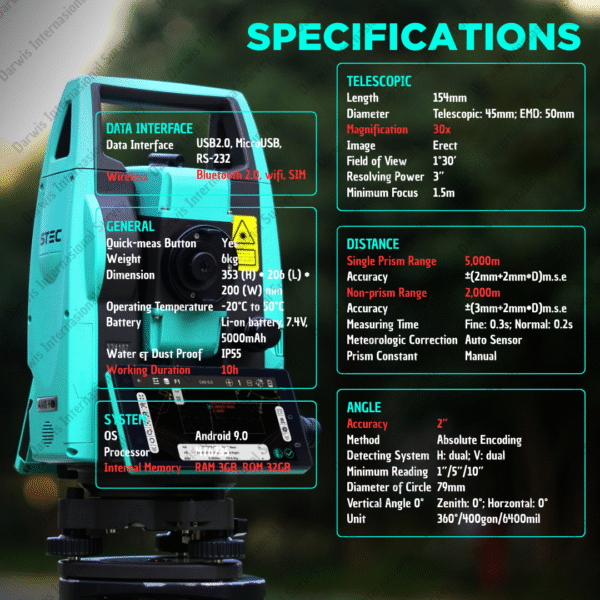

SEPESIFIKASI :

TOTAL STATIONAXIS 9L
SYSTEM
OSAndroid 9.0
ProcessorMT6735
Internal MemoryRAM 3GB, ROM 32GB
TELESCOPIC
Length154mm
DiameterTelescopic: 45mm; EMD: 50mm
Magnification30x
ImageErect
Field of View1°30’
Resolving Power3”
Minimum Focus1.5m
DISTANCE
Single Prism Range5,000m
AccuracyAXIS 9/9L: ±(2mm+2mm*D)m.s.e
AXIS 9P/9i: ±(1mm+1mm*D)m.s.e
Non-prism RangeAXIS 9: 1,500m
AXIS 9L: 2,000m
AXIS 9P/9i: 1,000m
Accuracy±(3mm+2mm*D)m.s.e
Measuring TimeFine: 0.3s; Normal: 0.2s
Meteorologic CorrectionAuto Sensor
Prism ConstantManual
ANGLE
AccuracyAXIS 9/9L: 2”
AXIS 9P: 1“
MethodAbsolute Encoding
Detecting SystemAXIS 9/9L: dual;
AXIS 9P: quadruple;
Minimum Reading0.1”/1”
Diameter of Circle79mm
Vertical Angle 0°Zenith: 0°; Horzontal: 0°
Unit360°/400gon/6400mil
DISPLAY
Display Unit5” color touch LCD
No. of Displays2
Buttons2 volume buttons, 1 power button on each display
GUIDE LIGHT
TypeRed+yellow flashing LEDs
Wokring Range150m
LASER PLUMMET - AutoHI
TypeClass II red laser
Measuring Range0.6-2.0m
Minimum Reading1mm
Distance Accuracy3mm
Deviation0.6mm @ 1.5m height
Spot Diamete1.5mm @ 1.5m height
TILT CORRECTION
Tilt SensorDual axis
MethodLiquid electric
Range4’
Resolution1”
LEVEL
Plate Level
Circular Level

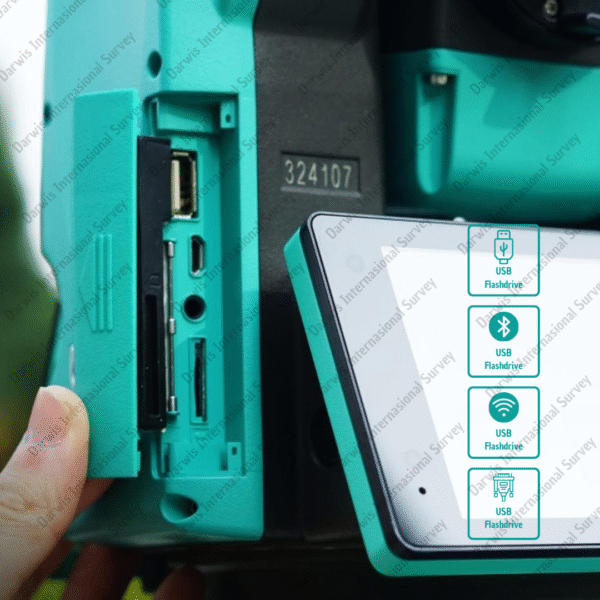

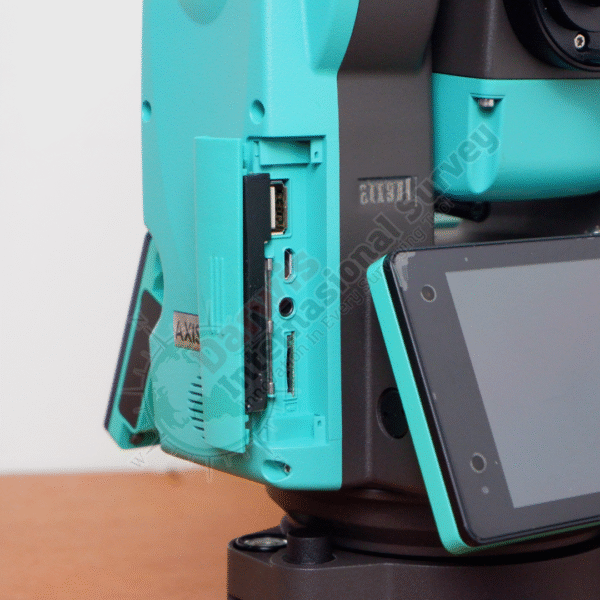

DATA INTERFACE
Data InterfaceUSB2.0, MicroUSB, RS-232
WirelessBluetooth 2.0/4.2, SIM card, Wi-Fi
GENERAL
Quick-meas ButtonYes
Weight6kg
Dimension353 (H) * 206 (L): 200 (W) mm
Operating Temperature-20°C to 50°C

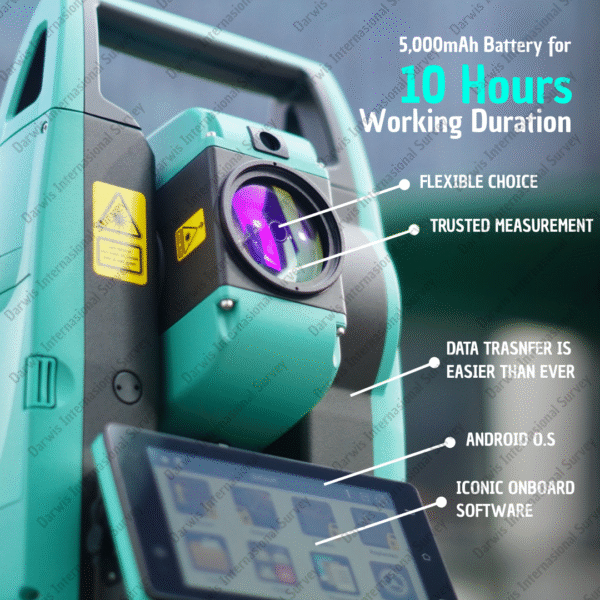

BatteryLi-on battery, 7.4V, 5,000mAh
Water & Dust ProofIP55
Working Duration10h

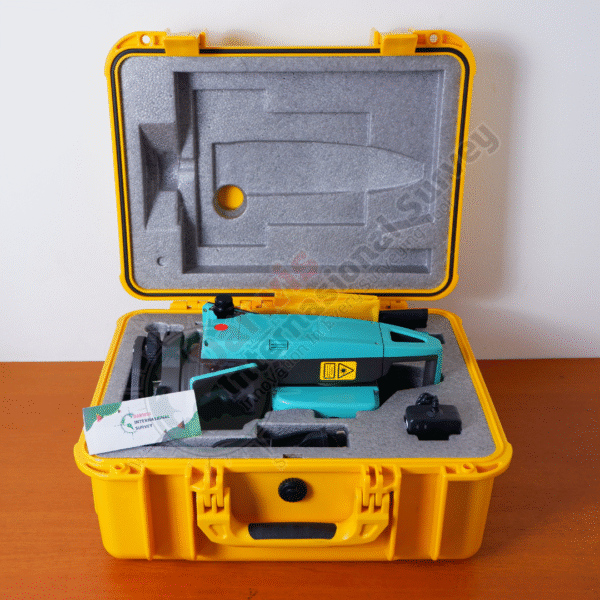

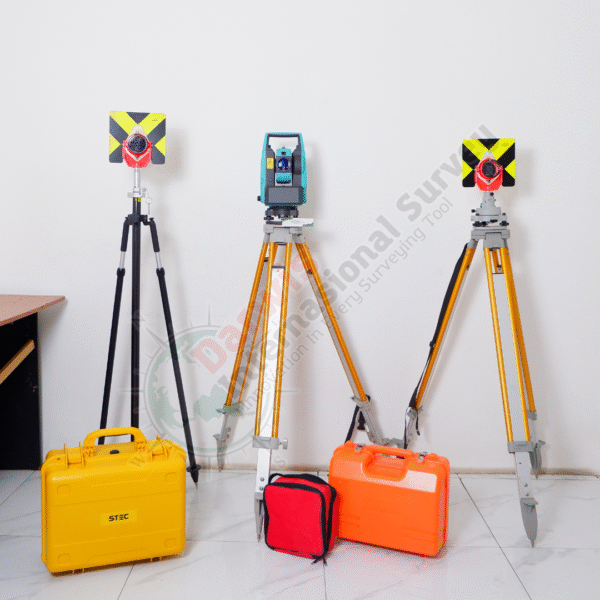

Package :

  • 1Unit AXIS9L
  • 1Unit Prisma ADS
  • 1Unit Prisma AK
  • 1Unit Stik Pole
  • 2Unit Tripod

Include :

  1. Sertifikat Calibration
  2. 1 Tahun Garansi
