Deskripsi
STEC AXIS 4L When Flexibility Matters.
AXIS4L Diuntungkan dengan layar sentuh dan berwarna 4 inci, tampilan grafis tampilan grafis dan program onboard ikonik baru, AXIS 4 Series adalah pilihan yang sempurna dan profesional bagi para surveyor dan konstruktor. Alur kerja yang lebih baik seperti COGO, quick code, road dan stake out membantu Anda bekerja lebih cepat dan lebih mudah dari sebelumnya.
SPESIFIKASI :
| TOTAL STATION | AXIS 4L |
|---|---|
| TELESCOPIC | |
| Length | 154mm |
| Diameter | Telescopic: 45mm; EMD: 50mm |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30’ |
| Resolving Power | 3” |
| Minimum Focus | 1.5m |

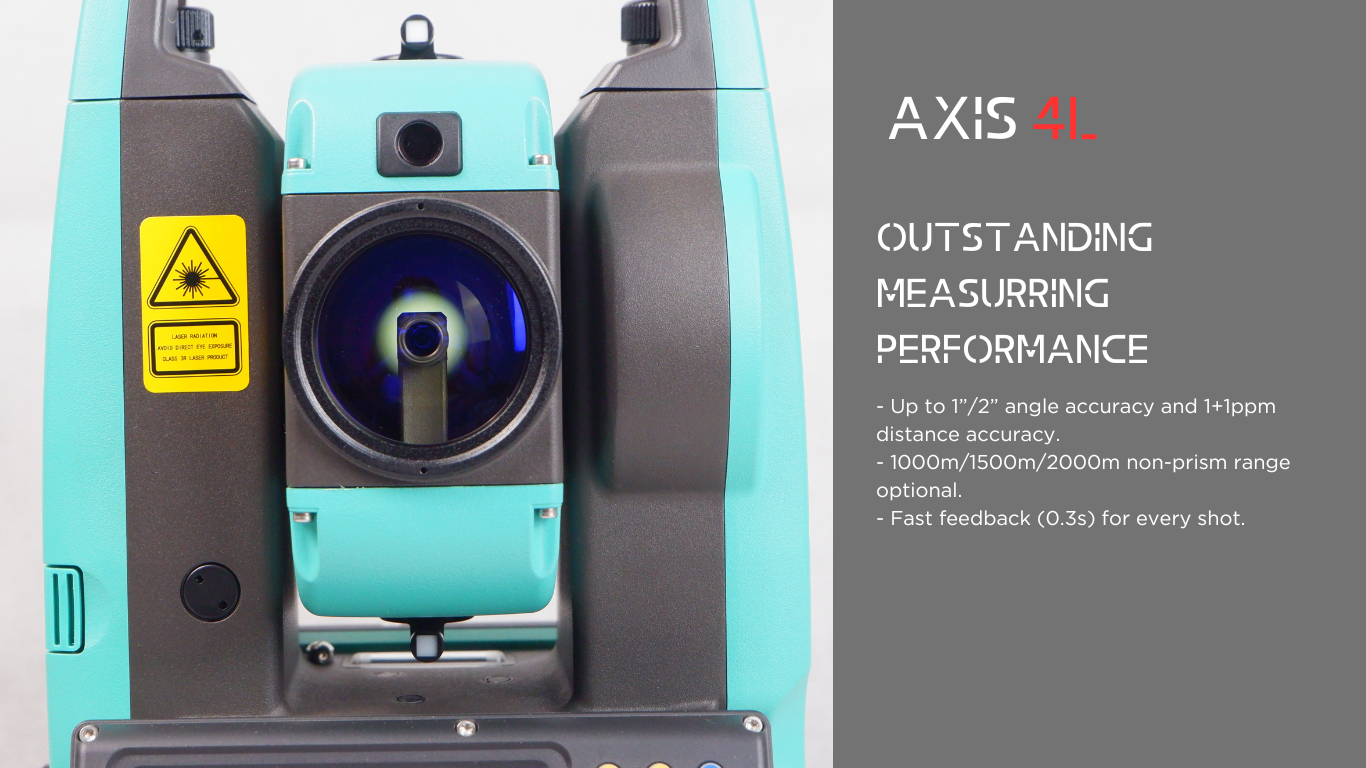

| DISTANCE | |
| Single Prism Range | 5,000m |
| Accuracy | AXIS 4/4L: ±(2mm+2mm*D)m.s.e |
| AXIS 4P: ±(1mm+1mm*D)m.s.e | |
| Non-prism Range | AXIS 4: 1,500m |
| AXIS 4L: 2,000m | |
| AXIS 4P: 1,000m | |
| Accuracy | ±(3mm+2mm*D)m.s.e |
| Measuring Time | Fine: 0.3s; Normal: 0.2s |
| Meteorologic Correction | Auto Sensor |
| Prism Constant | Manual |
| ANGLE | |
| Accuracy | AXIS 4/4L: 2” |
| AXIS 4P: 1“ | |
| Method | Absolute Encoding |
| Detecting System | AXIS 4/4L: dual; |
| AXIS 4P: quadruple | |
| Minimum Reading | 1”/5”/10” |
| Diameter of Circle | 79mm |
| Vertical Angle 0° | Zenith: 0°; Horzontal: 0° |
| Unit | 360°/400gon/6400mil |
| DISPLAY | |
| Display Unit | 4” color touch LCD |
| No. of Displays | 2 |
| Keyboard | Alphanumeric, soft keyboard |
| GUIDE LIGHT | |
| Type | Red+yellow flashing LEDs |
| Wokring Range | 150m |

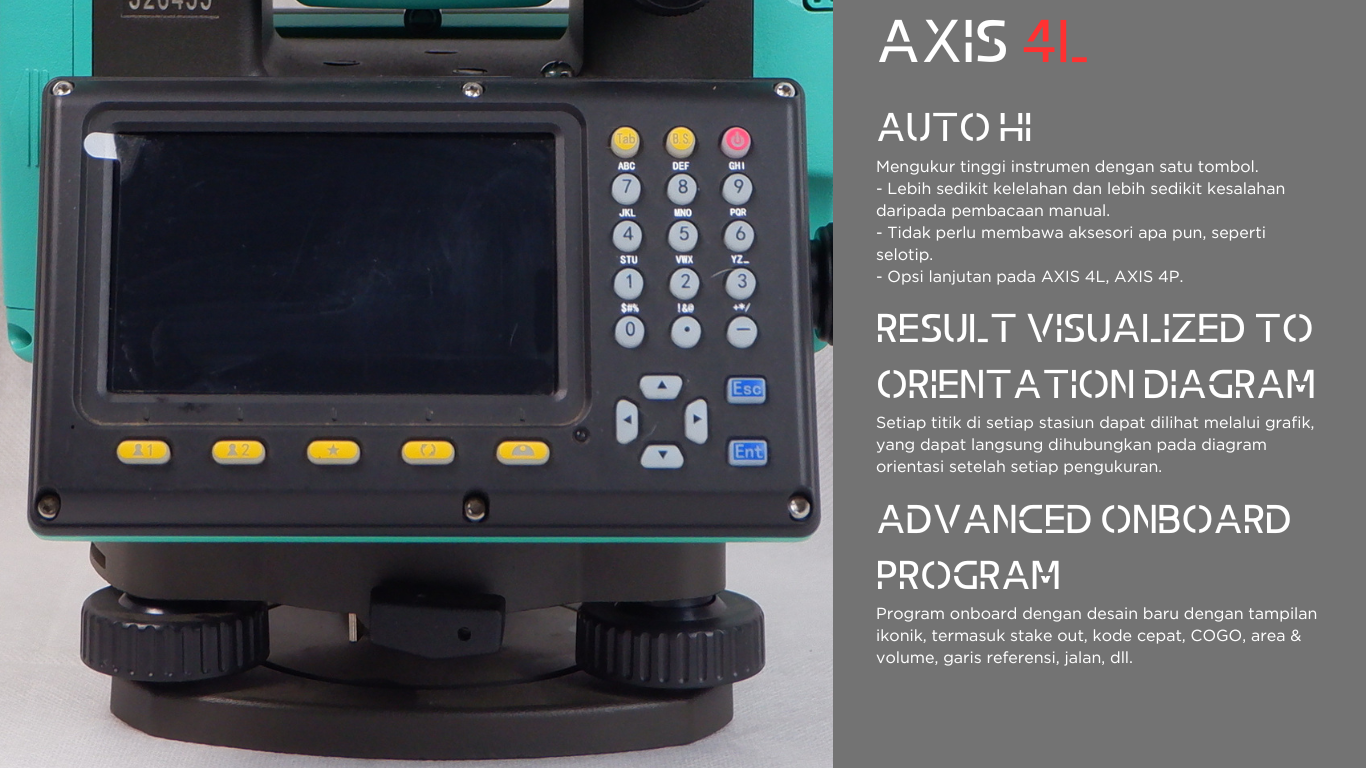

| PLUMMET - AutoHI Laser Plummet | |
| Type | Class II red laser |
| Measuring Range | 0.6-2.0m |
| Minimum Reading | 1mm |
| Distance Accuracy | 3mm |
| Deviation | 0.6mm @ 1.5m height |
| Spot Diameter | 1.5mm @ 1.5m height |
| TILT CORRECTION | |
| Tilt Sensor | Dual axis |
| Method | Liquid electric |
| Range | 4’ |
| Resolution | 1” |
| LEVEL | |
| Plate Level | 30”/2mm |
| Circular Level | 8’/2mm |

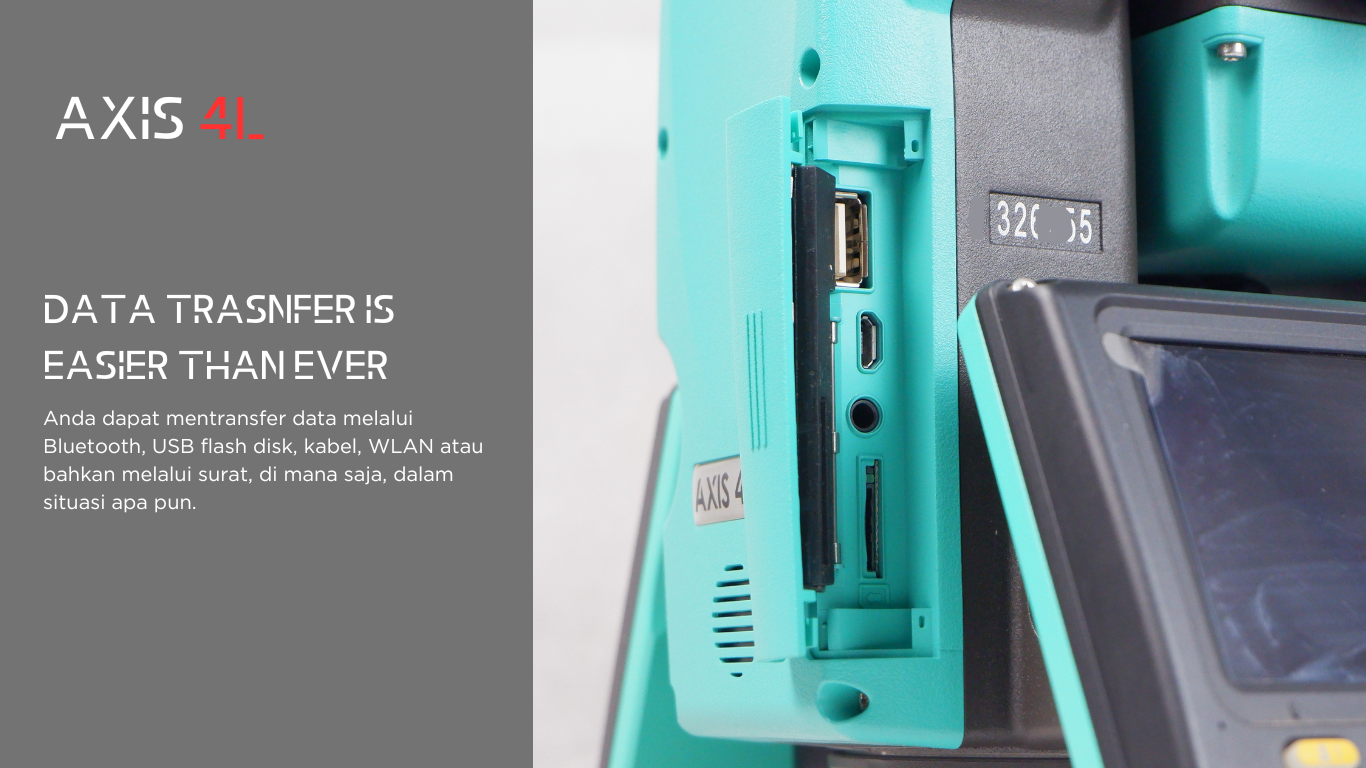

| DATA INTERFACE | |
| Internal Memory | 32GB |
| Data Interface | USB2.0, MicroUSB, RS-232 |
| Wireless | Bluetooth 2.0/4.2, Wi-Fi, SIM card |
| GENERAL | |
| Quick-meas Button | Yes |
| Weight | 6kg |
| Dimension | 353 (H) * 206 (L) * 200 (W) mm |
| Operating Temperature | -20°C to 50°C |
| Battery | Li-on battery, 7.4V, 5000mAh |
| Water & Dust Proof | IP55 |
| Working Duration | 10h |
Package :
- 1Unit AXIS 4L
- 1Unit Prisma ADS
- 1Unit Prisma AK
- 1Unit Stik Pole
- 2Unit Tripod
Include :
- Sertifikat Calibration
- 1 Tahun Garansi
Mencari alat survey?
Kunjungi Darwis Internasional Survey kami menyediakan berbagai alat survey yang berkualitas untuk para surveyor, kontraktor, dan berbagai industri yang membutuhkan akurasi tinggi dalam pengukuran tanah. Tunggu apa lagi ayoo dapatkan sekarang juga alat idaman kalian 🙂
Note :
- Mohon tanya ketersediaan alatterlebih dahulu sebelum membeli.
- Sertakan video unboxing dan berli ulasan untuk klaim garansi.
- Apabila tidak terdapat video unboxing dan ulasan, maka garansi hangus.
- Alat selalu kami cek terlebih dahulu sebelum dikirim.
